FLANGE FORMING MACHINE

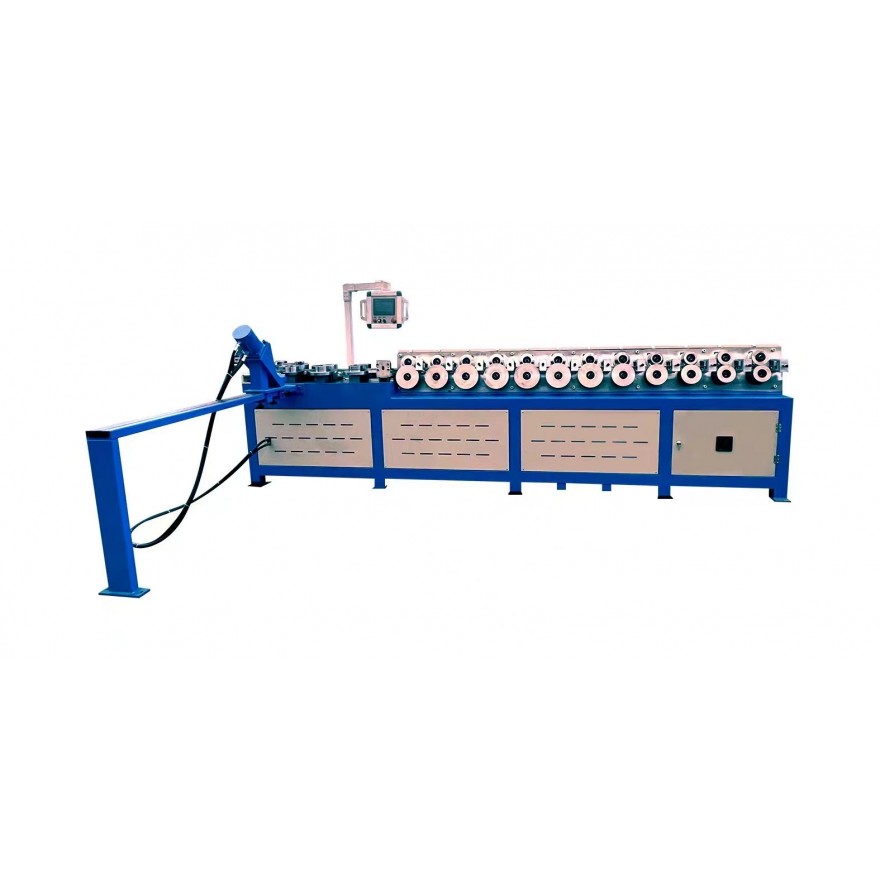

AIR DUCT FLANGE FORMING MACHINE JRFL  50

Forming pass number: self-developed oblique 8-group forming, 8 sets of side wheels

Processing thickness range: ordinary carbon steel 1.5-5mm, 304 stainless steel 1.5-4mm

Processing width range: 15/30, 20/30, 20/40, 25/40, 30/40, 40/40, 40/50, 50/50

Roll diameter: 220-1800MM (Note: small circle processing within 2MM thickness, edge height not exceeding 20MM can be processed).

Feeding speed: 1-8 meters adjustable

Dimensions: main machine 4200X800X1500, rack 1400X700X1000

Weight: 3800KG

Main configuration:

Display: Kunlun Tongtai 10-inch display

Main motor reducer: 11 KW brake motor, high-precision R series hard-tooth reducer

PLC: Japan Panasonic

AC contactor: Germany Schneider

Power supply: Taiwan Mingwei

Relay: Germany Schneider

Oil pump motor: 5.5 KW pure copper motor

Optional UL certified electrical cabinet and accessories
