Economic CNC Hydraulic Torsion Bar Press Brake JHT E200P Controller CE Series Fully NC 80T/2500 Press Brake Machine

I. Main Features

 · Streamlined design originated from europe, heat treatment of machine frame, high rigidity workbench, optional mechanical compensation device, to ensure the precision of bending

 · Hydraulic synchronous control and Estun NC programmable controller guarantee precise repeatability and easy use.

 · Integrated hydraulic system ( Germany Bosch Rexroth ) can be automatically switched to slow bending status.

 · X ,Y-axis realize accurate positioning function through NC E200P controller programming and servo motor.

 · Latest servo response hydraulic control technology, the machine tool is more stable and reliable.

 · Optimal parameter ratio, best core configuration guarantee stable performance and more convenient for operation

 · PBA series machine is equipped with single-axis backgauge system, single-axis bending angle system and V-axis compensation function combining with customized dies, any type irregular workpieces can be done

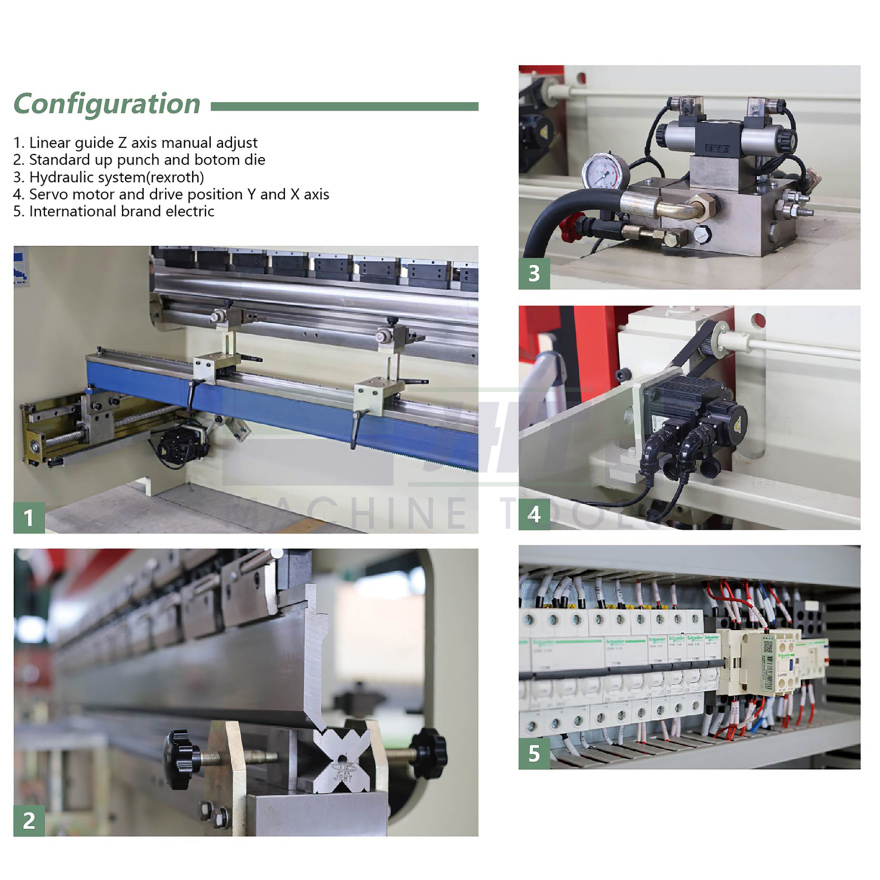

II. Main Configuration

 · Estun E200P controller

 · Controller controls and adjusts Y-axis and X-axis

 · Servo drive and control positioning of X-axis and Y-axis

 · Adopting HIWIN ball screw and linear guide rail, accuracy 0.05mm

 · Front supporter bracket

 · Germany Bosch Rexroth hydraulic valve block

 · Germany EMB oil tube connector

 · Germany Siemens main motor

 · France Schneider electrics

 · Hydraulic & electrical overload protection

 · Upper and lower dies（86°, R0.6mm, material: 42CrMo)

III. Safety Standard

1.EN 12622:2009 + A1:2013          2.EN ISO 12100:2010      3.EN 60204-1:2006+A1:2009

 · Front Finger protection ( safety light curtain )

 · South Korea KACON pedal switch ( safety grade 4 )

 · Back metal safeguard, CE standard

 · Safety relay monitor pedal switch, safety protection

 · Safety standard ( 2006／42／EC）

VI. Estun E200P NC Controller

 · High-definition LCD display

 · Control slider stop position

 · Backgauge control

 · Servo control, can realize the backgauge and high accuracy of control block.

 · Unilateral and bilateral location, to improve the positioning precision and reduce screw clearance.

 · The main action of the machine can be configured, such as fast closing, pressing, decompression, opening.

 · Backgauge can automatic homing.

 · Backgauge can be adjusted through the manual keys.

 · All ports can be configured directly on the device page, and the device has self-checking function.

 · mm / inch

 · Chinese / English
