JHT HSS Series Hydraulic Swing Beam Type Shearing Machine With DelemDAC310S CNC System

I. Main Features

1.Streamlined design originated from europe, main structure consists of rack, cutter holder, oil cylinder, hydraulic controller, backgauge etc. Finite-element analysis of main parts, Welding parts uses tempering, vibration and other processing methods to eliminate internal stress ensuring structural strength and rigidity;

2.Cutter holder use three-point support rolling guide rail, reducing the friction to the greatest extent, and realizing seamless rolling during cutter holder moving;

3.Left-most front holder configured with verticality regulator and front positioning device, easy operation and high efficiency;

4.Simple and effective blade adjusting mechanism rearranges blade clearance through CNC controller and improves the cutting quality.

5.Through fine ball screw and polished rod structure, good-performance servo motor control X-axis to ensure the accuracy, and unique designed timing transmission mechanism to ensure operation stable and reliable;

6.Light and shadow line is conductive to manual scribing for cutting; stable and reliable hydraulic transmission; integrated hydraulic system is able to significantly reduce problems caused by hydraulic fluid leakage;

7.High-quality alloy tool steel is capable enough to against impact load and high wear resistance when cutting;

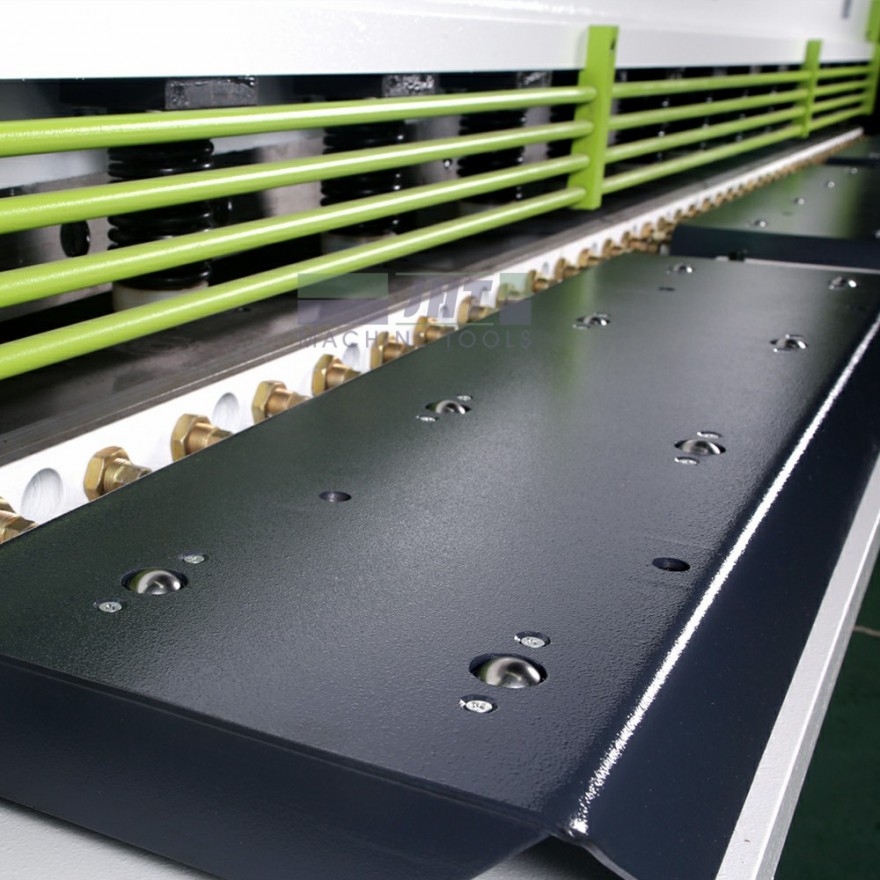

8.Referring to ergonomic design, user-friendly operation interface, improving the operation precision and comfortability; rolling ball workbench to reduce friction and prevent work piece surface from scratching; unique and practical safety guard, line with safety specifications, protect the personal safety; exquisite design, petty work piece can be done easily by hand.

II. Standard Configuration

 · Netherlands DELEM DA310S CNC controller

 · Backgauge X-axis is driven by servo motor

 · Servo motor drives controller

 · HIWIN ball screw and linear guide rail, control precision 0.05mm

 · Controller cantilever and front supporter

 · Germany Bosch Rexroth integrated hydraulic valve

 · Germany EMB oil tube connector

 · Germany Siemens main motor

 · Germany Schneider electrics

 · Hydraulic and electrical overload protection

 · Light aligning

 · Blade materials ( Cr12MoV )

 · South Korea KACON foot switch

 · Blade clearance is adjusted automatically

III. Safety Standards

 · Safety standards（2006／42／EC）

 · Opening electric cabinet and front safeguard door will cut off power

 · South Korea KACON foot switch (safety grade 4)

 · Rear metal safeguard, CE standard

 · Safety relay monitors foot switch, safety protection

IV. Netherlands DELEM DA310S NC Controller

 · High-definition LCD display, 128X64 pi

 · Backgauge control

 · Cutter clearance control

 · Cutting stroke control

 · Synchronously display the actual position and programming

 · Cutting count

 · 100 programs

 · Servo control
